ASSET TRACKING
Get more efficient with advanced asset tracking
Capture Location & Usage Data on High-Value Assets
Improve productivity, increase utilization, manage maintenance, and more.
Stop Hunting for Needed Equipment
Large numbers of powered and unpowered assets, such as generators, tools, cabling, materials handling equipment, and trailers are often misplaced, not delivered, or stolen. The lack of accurate location data triggers manual searches, unnecessary delays, and costly rentals that sap productivity, operational efficiency, and profitability. CalAmp helps you conquer this challenge with:
- Proven, durable, inconspicuous tracking hardware, including wired and battery-operated gateways and Bluetooth tags.
- Choice of user-friendly CalAmp interface or API solution to consolidate critical location data.
- Variable reporting frequency to optimize tracking ability while maximizing battery life.
- Geofences, alerts, and precision reporting that empower your team with immediate awareness and control.
Lock in Utilization Gains
Equipment utilization is often a complete mystery. Without accurate usage data, planning, purchasing, proof of service, and maintenance become guesswork. The larger the operation, the bigger the dent in efficiency and profitability.
CalAmp advanced asset tracking puts the complete picture of equipment utilization at your fingertips. Ensure greater efficiency and profitability with discreet, durable Calamp devices, connected to your yellow iron, generators, power take-off equipment, snowplows, salt spreaders, and myriad other assets.
Centralize usage information on all fleet assets with the new utilization dashboard, powered by Sisense. Immediately understand idle time and mileage, or hours operated. Filter views by date, asset type, and even fuel type, including electric vehicles. Drill down to explore key metrics and download a CSV or PDF file to share insights with stakeholders.
Visualize utilization data in your intuitive CalAmp interface or your existing application by tapping into the CalAmp Telematics Cloud via API. Harness CalAmp Professional Services to help streamline your project and accelerate time to market.
Streamline Maintenance
Keep your assets working for you and avoid unnecessary downtime with automated maintenance management. Map out a full schedule for each asset based on date, mileage, or hours of operation. Attain critical diagnostics data on yellow iron and light and heavy-duty vehicles. Know precisely how your entire fleet is adhering to plan and stay informed with alerts and comprehensive reporting capabilities.
Advanced Asset Tracking Devices
Choose the right solution from an array of industry-leading hardware options
Yellow Iron/Heavy-Duty Equipment
HMU-3640LB Gateway
- Heavy-duty gateway for GPS location, asset utilization, sensor monitoring, and capturing J1939 diagnostics codes.
- LTE CAT-1 with 3G/2G fallback
- Bluetooth 4.0
- 12-pin Mini-Deutsch connector with Analog/Digital/Serial Inputs/Outputs for wired connections
- Dual CAN bus interface
- IP67
- Shock: 3 axis, 50g
- Vibration: Sinusoidal 15 to 2KHz, 3 axis, 8-hr duration, 39m/s^2
- 7.0” x 3.0” x 1.57” dimensions
Trailers

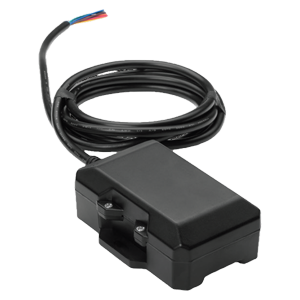

TTU-2830M
Asset Tracker
- LTE Cat M1 Communications
- 12/24 VDC vehicle systems with backup battery
- 12-wire captive harness for power and I/O
- Bluetooth 5.0, ignition input, 2 digital inputs, 3 digital outputs, TTL port, 1-wire interface for driver ID/temperature sense, 1 DC power output
- IP66, US-MIL-STD-202G, SAEJ1455
- 4.5” x 3.2” x 1.6” dimensions
MORE →

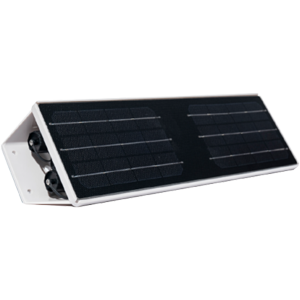

TTU-2900MB
Solar Asset Tracker
- CalAmp Smart Trailer support
- LTE CAT M1 communications
- 12/24 VDC vehicle systems with backup battery
- 1x 12-Pin round connector, 1x 14-Pin round connector for power and I/O
- CAN bus for Trailer CAN and sensor hubs
- Ignition input, 3 digital inputs, 2 digital outputs, 2 analog inputs, 1-wire interface for driver ID/temperature sense, 2 DC power outputs
- IP67, US-MIL-STD-202G, SAEJ1455
- 18.2” x 5” x 1.9” dimensions
MORE →
Light and Medium Duty Powered Assets

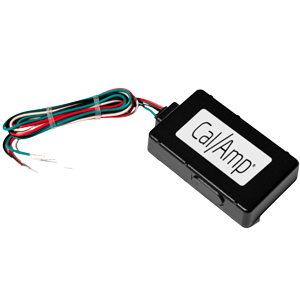

LMU-1300M
Sealed Asset Tracker
- Ideal tracking solution for light construction equipment such as generators, air compressors, utility vehicles, and forklifts
- Asset powered (12V) with backup battery
- LTE CAT-M1 communications
- Variable frequency ping rate
- IP65, MIL-STD-202G/810F, SAE J1455
- 3.50 “x 1.97” x 0.75” dimensions
- Built on EdgeCore firmware
MORE →
LMU-2650MB
Gateway
- Light/medium-duty in-cab gateway for GPS location, asset utilization, and sensor monitoring
- LTE Cat M communications with 2G support
- Asset powered (12V) with backup battery
- Bluetooth 5.x
- 24-pin connector with Analog/Digital/Serial
- Inputs/Outputs for wired connections
- ON/OFF switch and switched DC power output
- 10MB RAM
- MIL-STD-202G/810F, SAE J1455
- 4.0” x 2.2” x 0.8” dimensions
MORE →

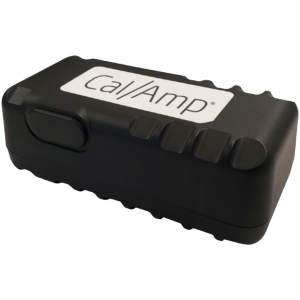

ATU-1300
Sealed Asset Tracker
- Use for light duty, long-life GPS asset tracking
- LTE CAT- M1 IoT communications
- 5-year battery life (1 ping per day)
- IP67
- 4" x 1.98" x 1.54" dimensions
MORE →

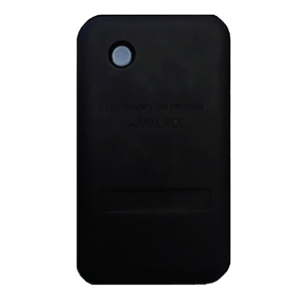

SC1204
Rechargeable Gateway
- Use for asset location and condition monitoring (temperature, humidity, shock, light, tilt)
- Deploy with or without Bluetooth tags
- Rechargeable li-ion battery (30 days at 15-minute reporting interval)
- LTE CAT-M1 communications
- IP67
- 5.62” x 3.3” x 0.7” dimensions
MORE →
SC1205V
Wired Gateway
- Use with Bluetooth tags for asset proximity or condition monitoring (temperature, humidity, shock, light, tilt)
- 12V (automotive) or AC power with optional stepdown transformer
- IP66 (connector dependent)
- 5.61” x 3.25” x 1.28 dimensions
MORE →

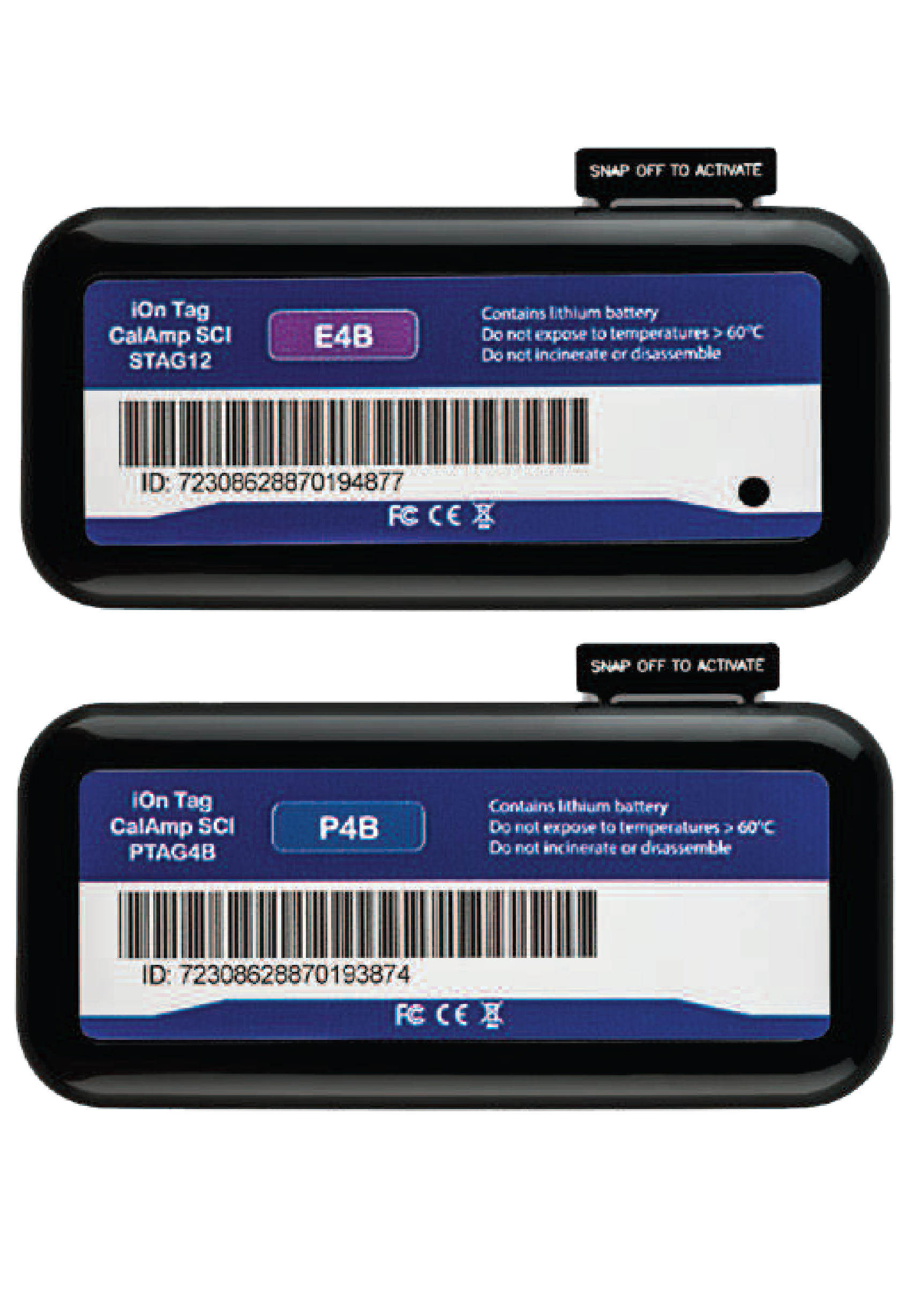

PTAG04
Bluetooth Tag
- Use for proximity tracking
- Pair with SC1204 or SC1205V gateways
- 24-month battery life (3-second passive beacon rate)
- IP67
- 1.33” x 2.85” x .19” dimensions
MORE →
STAG04HT
Environmental Bluetooth Tag
- Use for asset proximity and condition monitoring (humidity, temperature)
- Pair with SC1204 or SC1205V gateways
- 9-month battery life (3-second passive beacon rate)
- IP65
- 1.33” x 2.85” x .19” dimensions
MORE →
Non-Powered Assets
ATU-1300
Sealed Asset Tracker
- Use for long-life GPS asset tracking
- LTE CAT- M1 communications
- 5-year battery life (1 ping per day)
- IP67, US-MIL-STD-202G/810F, SAE J1455
- 4" x 1.98" x 1.54" dimensions
MORE →
SC1204
Rechargeable Gateway
- Use for asset location and condition monitoring (temperature, humidity, shock, light, tilt)
- Deploy with or without Bluetooth tags for proximity and condition monitoring (temperature and humidity)
- Rechargeable li-ion battery (30 days at 15-minute reporting interval)
- LTE CAT-M1 communications
- IP67
- 5.62” x 3.3” x 0.7” dimensions
MORE →

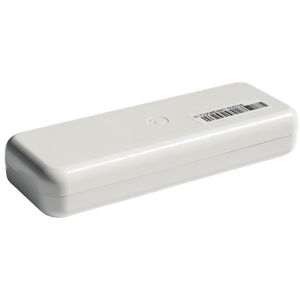

SC1302
Single Use Gateway
- Use for asset location and condition monitoring (NIST traceable temperature and humidity)
- Supports proximity and condition monitoring (temperature and humidity)
- Bluetooth tags
- 40 days battery life at 15-minute reporting interval
- LTE CAT-M1 communications
- IP67
- 5.5” x 2” x 1” dimensions
MORE →
PTAG04
Bluetooth Tag
- Use for proximity tracking
- Pair with SC1204 or SC1205V gateways
- 24-month battery life (3-second passive beacon rate)
- IP67
- 1.33” x 2.85” x .19” dimensions
MORE →
STAG04HT
Environmental Bluetooth Tag
- Use for asset proximity and condition monitoring (humidity, temperature)
- Pair with SC1204 or SC1205V gateways
- 9-month battery life (3-second passive beacon rate)
- IP65
- 1.33” x 2.85” x .19” dimensions
