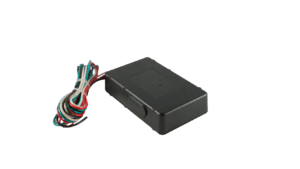

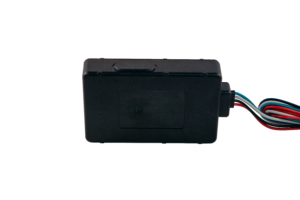

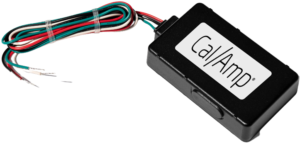

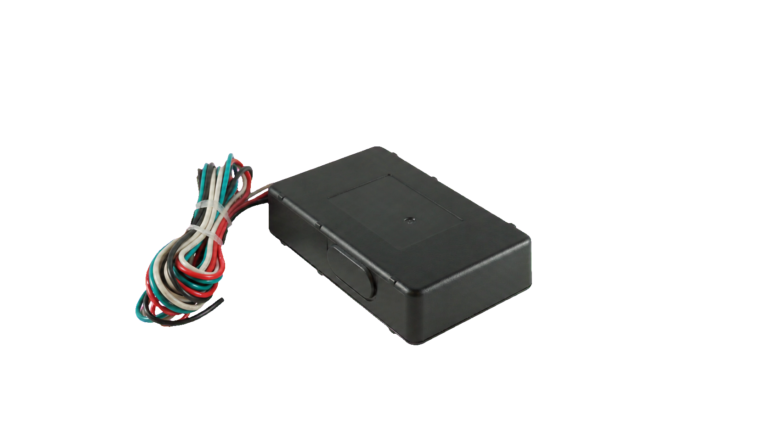

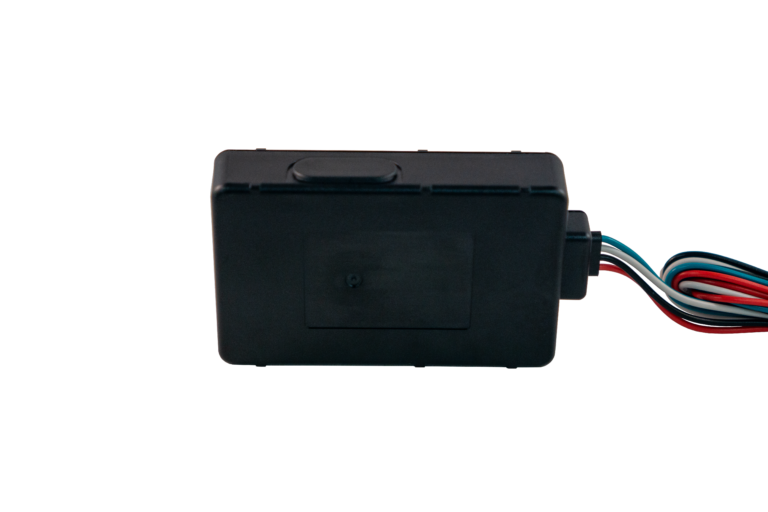

LMU 1300M

LMU-1300M

LTE CAT M1 Sealed

Compact and Ruggedized GPS Asset Tracker
Software & Services
Highlights
Technical Specs
Related Products
Download PDF
Software & Services

Cloud Native Platform

CalAmp Telematics Cloud allows you to connect remote assets to a diverse set of vertical applications and third-party services to scale your fleet and power data-driven operations.

Powerful Applications

CalAmp’s enterprise-grade applications allow you to visualize the data you need and extract maximum value while minimizing your costs. Put intelligent analytics and custom reporting at your fingertips via a single-view, user-friendly interface.

Highlights

Asset and Vehicle Tracking Technology

Flexible  •  Precise  •  Affordable
ERP

Flexible Installation

Wired, OBDII (with optional adapter), and cigarette lighter power harness options for ready-to-use device setup

Iphone Location

Remote Safety Lockout

Easily disable vehicles or equipment, and remotely enable theft detection and stolen vehicle recovery

Driving

Driver Monitoring

Run time and performance diagnostics including speeding, accident detection, extreme braking and cornering, etc.

Virtual Boundaries

Comprehensive Inputs/Outputs

Digital and Analog I/O options, triple-axis accelerometer

Car Battery

Battery Assurance

Mitigate interference or power loss with internal backup included battery

Technical Specs
Cellular/Network
Global Variant
LTE CAT-M1

2100 (B1)/1900 (B2/B25)/1800 (B3)AWS 1700 (B4/B66)/850 (B5/B26)/900(B8)/700 (B12/B13/B28/B85)/800 (B18/B19/B20/B27) MHz

GSM/GPRS

850/900/1800/1900 MHz

Data Support
SMS, UDP Packet Data
Satellite Location (GNSS)
Constellation Support

GPS/GLONASS/BeiDou/Galileo/QZSS

Tracking Sensitivity

-157 dBm

Acquisition Sensitivity

-157 dBm (hot start)

-146 dBm (cold start)

Location Accuracy

<2.5m CEP Open Sky

Location Update Rate

Up to 5 Hz

Comprehensive I/O
Digital Inputs

1 (high/low selectable 0-32 VDC)

Digital Outputs

1 (open collector relay 150mA)

Serial Interface

1 USB Port

Sensors

Accelerometer: Triple-axis, impact, motion sense

Gyroscope: Triple-axis, tilt, yaw, roll detection

Wireless Interfaces
Cellular Antenna

Internal

GPS Antenna

Internal

Connectors/SIM Access
SIM Access

External

Certifications
Industry Certifications

FCC, IC, PTCRB, CE/RED, Applicable Carriers

Electrical
Operating Voltage

12/24 VDC Vehicle Systems

9-32 VDC (start-up, operating)

7-32 VDC (momentary)

Power Consumption2

Typical <500uA @ 12V (low power sleep)

Typical <15mA @ 12 V (radio-active sleep)

Typical <60mA @ 12 V (GPS tracking and
cell idle)

Battery Pack
Battery Capacity

180 mAh

Battery Technology

Lithium-Ion

Charging Temperature

0° to +45° C

Environmental
Temperature

-30° to +60° C (connected to primary power)

-20° to +60° C (operating on internal battery)

-10° to +25° C ≤ 6 months (long term storage with battery)

Humidity

90% RH @ 50° C non-condensing

Shock and Vibration

U.S. Military Standards 202G, 810F, SAE J1455

ESD

IEC 61000-4-2 (4KV test)

Ingress Protection Rating3

IP65

Physical/Design
Dimensions

3.50 “x 1.97” x 0.75”

89 mm x 50.1 mm x 19.2 mm

Weight

3.53 oz. (100 g)

Edge Intelligence¹
PEG™

Behavioral scripting (PEG2 on RTOS)applications

Geo-Fences

32 built-in

Buffered Messages

20,000

Cloud/Software Services¹
CalAmp iOn

Monitor, manage, upgrade firmware, configure and troubleshoot devices remotely

CalAmp Telematics Cloud

Device data stream via RESTful APIs

¹ Subscription service required. Contact sales rep for additional details.
2 PEG Configuration Option
3 IP Certified if CalAmp Assembled
