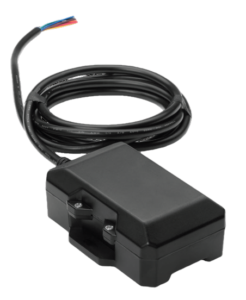

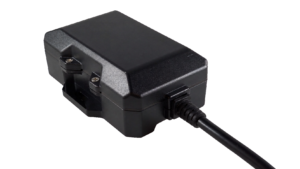

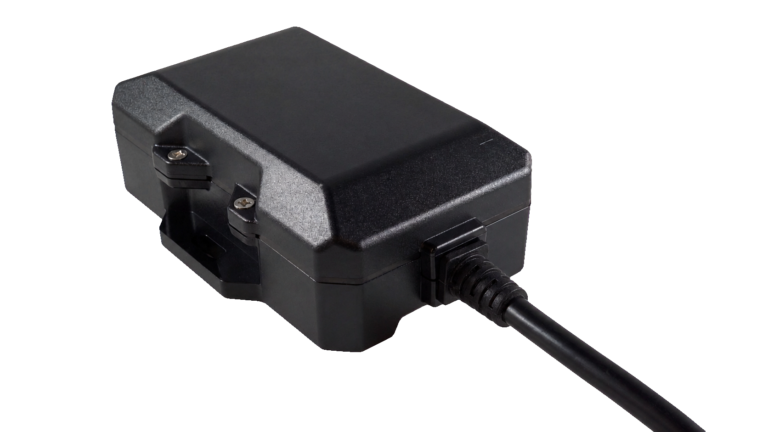

TTU 2830

TTU-2830M

LTE Cat M1, 12-Wire

Versatile Asset Tracker Built for Flexibility, with Extensive I/O Capabilities and Excellent Field Performance
Software & Services
Highlights
Technical Specs
Related Products
Download PDF
Software & Services
The TTU-2830™ LTE Cat M1 weatherproof, complete vehicle tracking device is designed for reliable, long-term deployments and is ideal for assets that are tethered but may sit disconnected for periods of time. Equipped with LTE Cat M1 global coverage, Bluetooth Low Energy (BLE) 5.0 capability, and expansive I/O harness, the TTU-2830 is a versatile asset management solution.

Software and Services

  • PEG™ Embedded Intelligence Engine (included)
  • PULS™ Device Management (included)
  • Micro-Services (available)
  • CrashBoxx™ (optional)

Networks

  • LTE Cat M1
  • GSM/GPRS Support
Highlights

Versatile Asset Tracker Built for Flexibility

Inventory

Features

  • LTE Cat M1 Connectivity
  • BLE 5.0 Capable Large (5.2 Ah)
  • Rechargeable Battery
  • Weatherproof (IP66)
  • 500 Message Cycles on Fully Charged Battery
Proof Of Delivery

Market Applications

  • Asset Tracking
  • Trailer Tracking
  • IIoT Remote Monitoring
Technical Specs
Cellular/Network
Global Variant
LTE Cat M1

2100 (B1)/1900 (B2)/1800 (B3)AWS 1700 (B4)/850 (B5/B26)/900
(B8)/700 (B12/B13/B28)/800 (B18/B19/B20)/1900 (B39/B25) MHz

Data Support
SMS, UDP Packet Data, TCP, CalAmp Telematics Cloud API
Satellite Location (GNSS)
Constellation Support

Hybrid GPS, GLONASS, SBAS Engine (WAAS, EGNOS, MSAS)

Channels

55 Channel

Tracking Sensitivity

-167 dBm

Acquisition Sensitivity

-156 dBm (hot start)

-148 dBm (cold start)

Location Accuracy

~2.0m CEP Open Sky (SBAS 24 hours static)

Location Update Rate

Up to 4 Hz

Anti-jamming

AGPS Location assistance capable

Comprehensive I/O
Ignition Inputs

1 fixed bias

Digital Inputs

2 (high/low bias selectable 0-30 VDC)

Digital Outputs

3 (open collector relay 150mA)*

Analog Inputs

1 external ADC input

DC Power Output

1 switched VIN*

Serial Interface

1 TTL port

1-Wire® Interface

1 (driver ID/temperature sense)

Status LEDs

2 (GPS and cellular)

Accelerometer

Built in, triple-axis (driver behavior, impact detection,
motion sensing, tilt detection)

Interface Standards
Bluetooth

Bluetooth Low Energy (BLE) 5.0 capable

Certifications
Industry Certifications

FCC, IC, CE, PTCRB, RoHS, BT SIG, RCM

Electrical
Operating Voltage

12/24 VDC Vehicle Systems

9-30 VDC (start-up, operating)

7-32 VDC (momentary)

Power Consumption

Typical 400uA @ 12V (deep sleep)

Typical 15mA @ 12V (radio-active sleep)

Typical 60mA @ 12V (active tracking w/GPS and cell enabled)

Battery Pack
Battery Capacity

Up to 5200 mAh

Battery Technology

Lithium-Ion

Charging Temperature

0° to +45° C

Environmental
Temperature

-30° to +60° C (connected to primary power)

-20° to +60° C (operating on internal battery)

-20° to +25° C (storage > 3 months)

Humidity

85% RH @ 50° C non-condensing

Shock and Vibration

U.S. Military Standards 202G, SAEJ1455

ESD

IEC 61000-4-2 (4KV test)

Ingress Protection Rating

IP66

Physical/Design
Dimensions

4.5 x 3.2 x 1.6” (114 x 80 x 39mm)

Weight

20.45 oz. (580g w/harness)

Connectors/SIM Access
Power, I/O

12 wire captive harness

SIM Access

Internal (2FF SIM)

Wireless Interfaces
BLE Antenna

Internal

Cellular Antenna

Internal

GPS Antenna

Internal

Device Management
PULS™

Monitor, manage, upgrade firmware, configure and
troubleshoot devices remotely

Embedded Intelligence Engine
PEG™

Update device functionality or develop new on the edge
applications

* Selection Configurable - Output2 and switched VIN share the same wire

CALIFORNIA PROPOSITION 65
WARNING: This product can expose you to chemicals including Carbon black and Nickel, which are known to the State of California to cause cancer, and including Bisphenol A and 1,3-Butadiene, which are
known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
