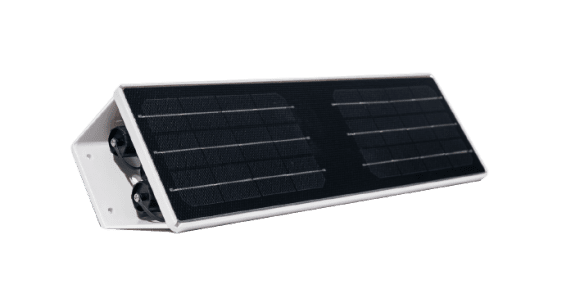

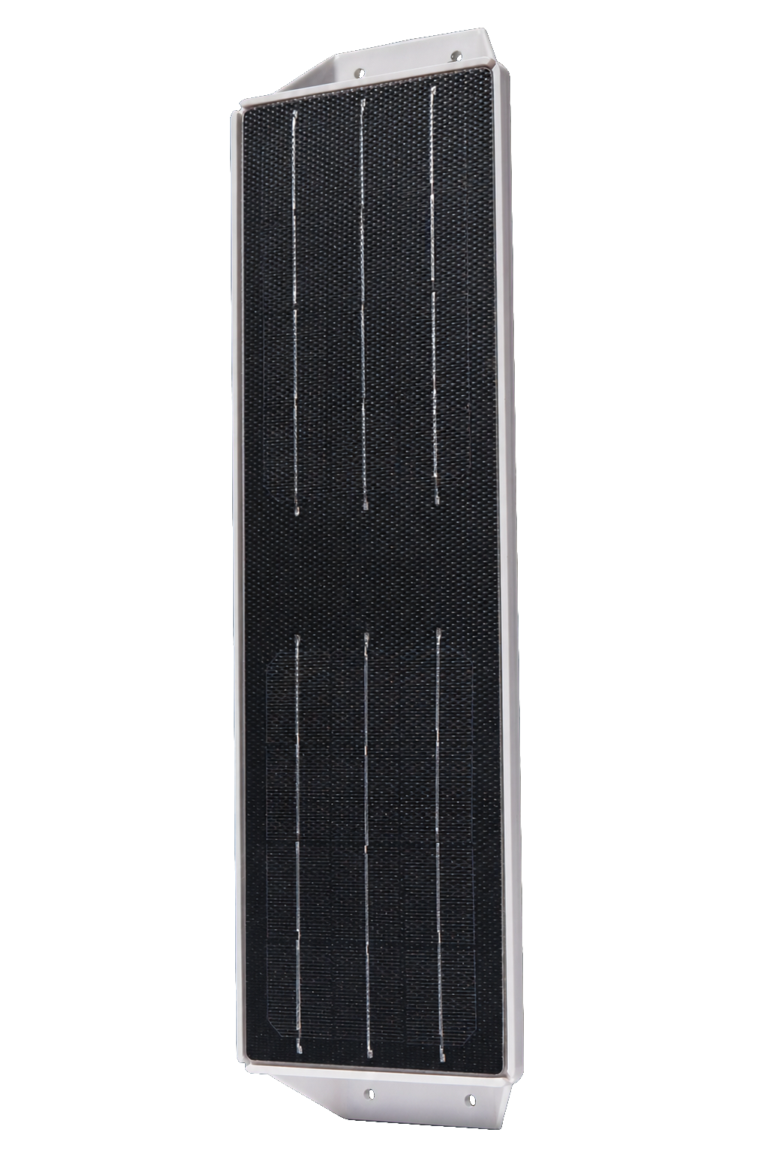

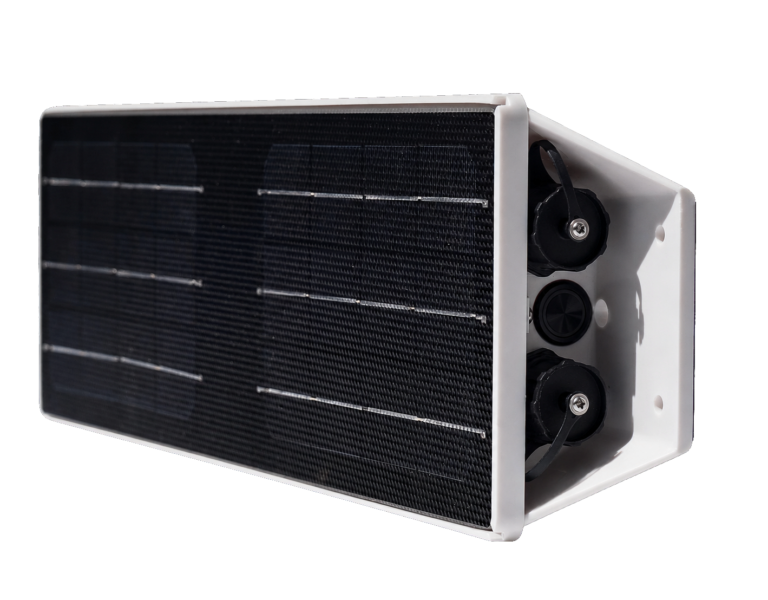

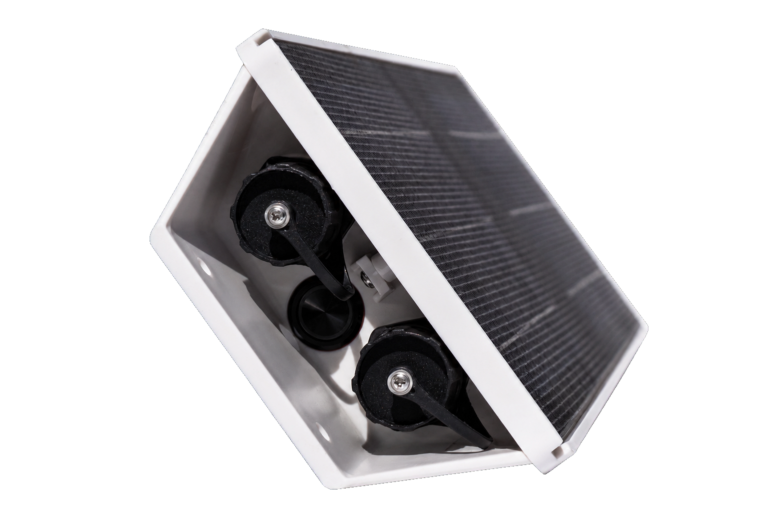

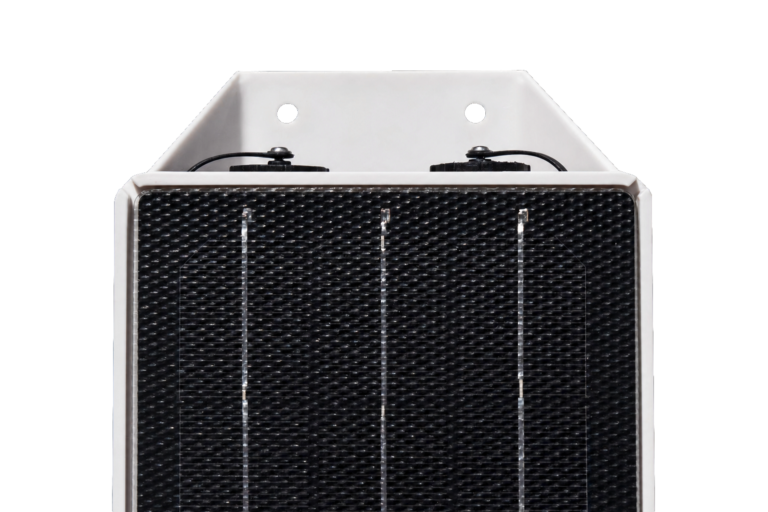

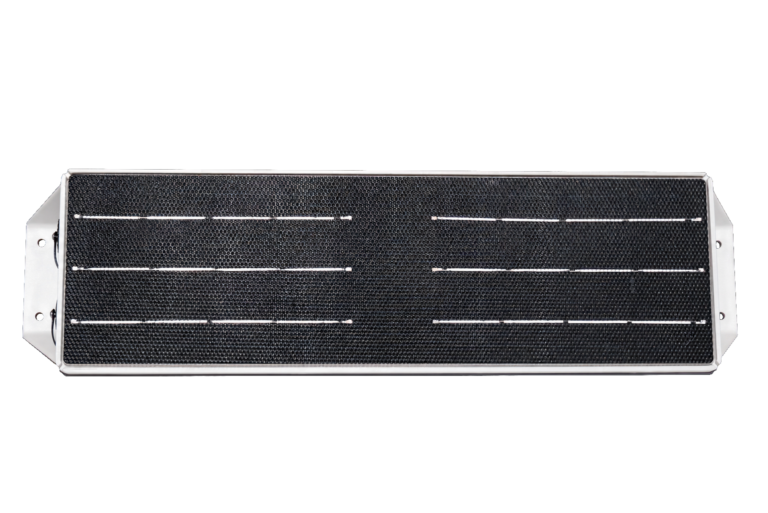

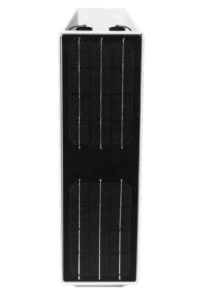

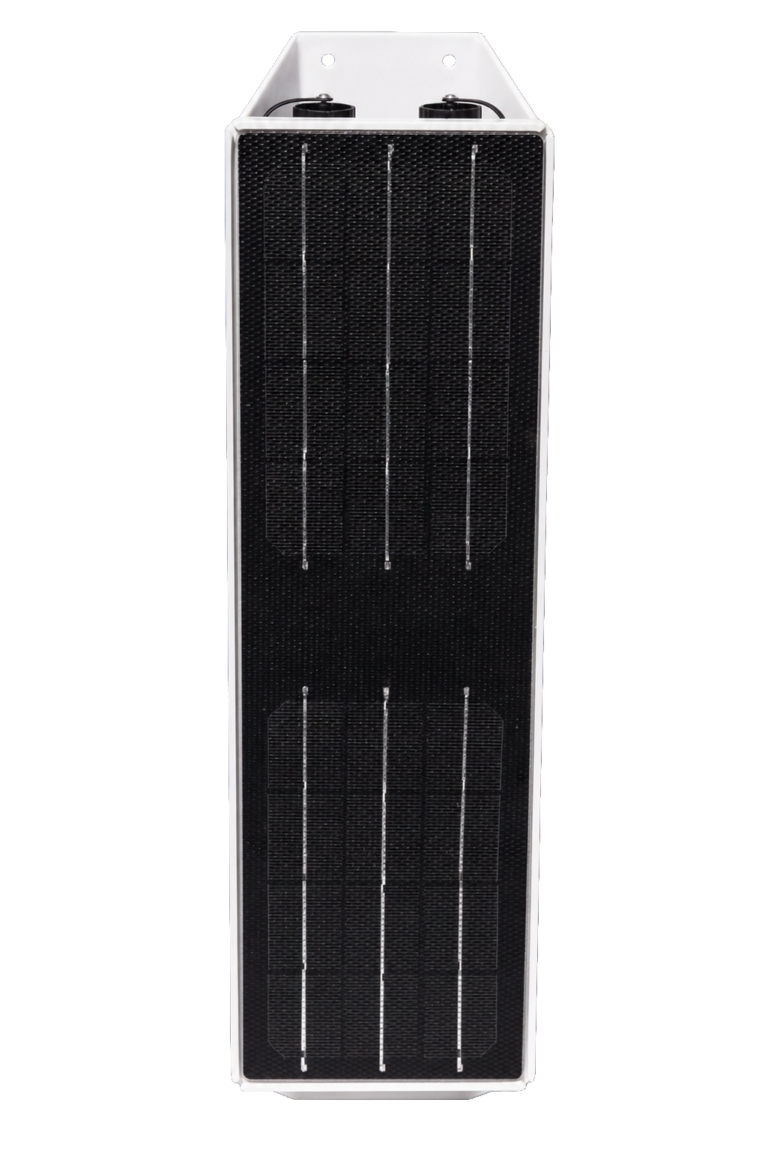

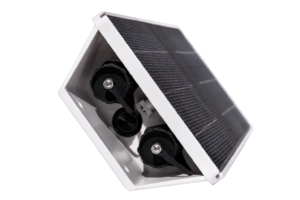

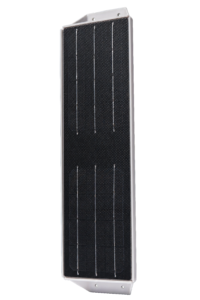

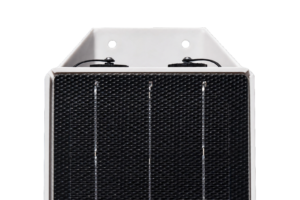

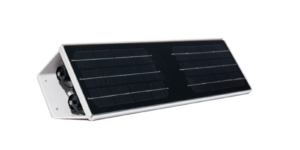

TTU 2900

TTU-2900MB

LTE CAT M1, Solar-Tracker

Weatherproof Solar Powered Asset Tracker for Extreme Environments
Software & Services
Highlights
Technical Specs
Related Products
Download PDF
Software & Services

CalAmp Telematics Cloud

Connect remote assets to a diverse set of vertical applications and third-party services to scale your fleet and power data-driven operations.

Powerful Applications

Visualize the data you need and extract maximum value while minimizing your costs. Put intelligent analytics and custom reporting at your fingertips via a single-view, user-friendly interface.

Highlights

Comprehensive Asset Visibility

Safe  •  Secure  •  Efficient
Solar

Solar Regenerative Telematics

  • High-capacity solar panel
  • High-capacity battery for operation in extended low-light conditions
GPS Tracking

Rich Connectivity for Sensor Integration

  • Bluetooth 5.0 for short-range wireless connectivity
  • CAN bus for Trailer CAN, & sensor hubs
  • Analog/Digital/Serial Inputs/Outputs for wired connections
Checkmark Clean2

LTE Cat-M + 2G Cellular Connectivity

  • Deployable world-wide
  • Future proofed for 5G (included in mMTC 3GPP Rel. 16)
Rugged2

Ruggedized

  • IP-67 rated with stellar shock & vibration performance
Technical Specs
Cellular/Network
Global Variant
LTE CAT-M1

2100 (B1)/1900 (B2)/1800 (B3)AWS 1700 (B4)/850 (B5/B26)/900 (B8)/700 (B12/B13/B28)/800 (B18/B19/B20)/1900 (B39/B25) MHz

GSM/GPRS

850/900/1800/1900 MHz

Data Support
SMS, UDP, TCP, CalAmp Telematics Cloud API
Satellite Location (GNSS)
Constellation Support

GPS/GLONASS/BeiDou/Galileo/QZSS

Tracking Sensitivity

-157 dBm

Acquisition Sensitivity

-157 dBm (hot start)

-146 dBm (cold start)

Location Accuracy

<2.5m CEP Open Sky

Location Update Rate

Up to 5 Hz

Comprehensive I/O
Ignition Inputs

1 fixed bias

Digital Inputs

3 (high/low bias selectable 0-30 VDC)

Digital Outputs

2 (open collector relay 150mA)

Analog Inputs

2 external ADC inputs

1-Wire® Interface

1 (driver ID/temperature sense)

DC Power Outputs

1 switched VCC_SYS (3.5V – 4.2V), 1 switched 3.3V

Accelerometer

Built in, triple-axis (driver behavior, impact detection, motion sensing, tilt detection)

Button/LED

1 (Multi-function Push Button Switch w/LED indicator)

Serial Interface

1 TTL Port, 1 RS-232 Port

Certifications
Industry Certifications

FCC, IC, PTCRB, RoHS

Cloud/Software Services¹
CalAmp Telematics Cloud

Device data stream via RESTful APIs

CalAmp Application

Fleet management software

Accessories

Mounting tabs built-in for easy install
Optional harnesses available

Edge Intelligence¹
PEG™

Update device functionality or develop new on the edge applications

Electrical
Operating Voltage

12/24 VDC Vehicle Systems

9-30 VDC (start-up, operating)

7-32 VDC (momentary)

Battery Technology

6W @ 12.5V

Power Consumption

Typical 400uA @ 12V (deep sleep)

Typical 15mA @ 12V (radio-active sleep)

Typical 60mA @ 12V (active tracking with GPS and cell enabled)

Battery Pack
Battery Capacity

6.2 Ah

Battery Technology

Lithium-Ion

Charging Temperature

-10° to +50° C

Environmental
Temperature

-30° to +60° C (connected to primary power)

-20° to +60° C (operating on internal battery)

-30° to +45° C ≤ 6 months (long term storage with battery)

Humidity

75% RH @ 50° C non-condensing

Shock and Vibration

U.S. Military Standards 202G, SAEJ1455

ESD

IEC 61000-4-2 (4KV test)

Ingress Protection Rating+

IP67

Physical/Design
Dimensions

18.2” x 5” x 1.9”

463 mm x 128 mm x 48 mm

Weight

38 oz. (1084 g) (w/ 6 Ah Battery)

Connectors/SIM Access
Power, I/O

1x 12-Pin round connector, 1x 14-Pin round connector

SIM Access

External (4FF)

Interface Standards
Bluetooth

Bluetooth Low Energy (BLE)

VBUS Truck Data

CAN ( J1939), TrailerCAN

Wireless Interfaces
GPS Antenna

Internal

Cellular Antenna

Internal

BLE Antenna

Internal

¹ Subscription service enabled. Contact sales rep for additional details.
