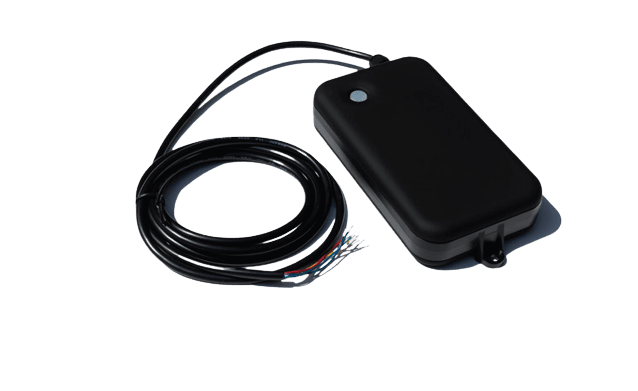

SC-1205v™
Multi-Use LTE CAT-M1 Smart Tracking Device for Visibility and Compliance
The SC1205V is a tracking device engineered for logging location and environmental conditions. It has a high capacity BLE chip that can read up to 600 iOn Tags, making it an ideal solution for fixed locations asset tracking (such as a warehouse) or in-transit asset tracking.
Software and Services
- SC iOn Platform
- 24/7 Command Center Monitoring
- API Platform Support
Networks
- LTE Cat-M1 Cellular
- 2G Support
- Wi-Fi Enabled
Smart Tracking Device for Visibility and Compliance
Features
- LTE Cat M1 Connectivity
- Captive Harness Sensors for: Light, Motion, Shock, and Temperature
- BLE Gateway to communicate with 600 iOn™ Tags
Market Applications
- Asset Tracking
- Cargo Monitoring
- Warehouse Monitoring
| Cellular/Network | |
|---|---|
| Communication | |
| LTE Cat M1 | 2100 (B1)/1900 (B2)/1800 (B3)AWS 1700 |
| GSM/GPRS | 850/900/1800/1900 MHz Bi-directional communications Over-the-air adjustable reporting rate Reporting rate: 1 min to 24 hour |
| Wi-Fi Enabled | 2.4Ghz B/G/N |
| Wireless Interfaces | |
|---|---|
| BLE Antenna | Internal |
| Cellular Antenna | Internal |
| GPS Antenna | Internal |
| Location Accuracy | |
|---|---|
| Wi-Fi | 100 meters |
| Cellular | 500 meters |
| GPS | 3-5 meters |
| Comprehensive I/O | |
|---|---|
| Digital Inputs | 2 (general purpose, IGN) |
| Digital Outputs | 1 (general purpose - door locking/unlocking) |
| Analog Inputs | 1 (external ADC input 0-35 VDC) |
| Certifications | |
|---|---|
| Industry Certifications | FCC, PTCRB, Industry Canada |
| Battery Pack | |
|---|---|
| Battery Capacity | Up to 4000 mAh |
| Battery Technology | Lithium-Ion |
| Charging Temperature | 0° to +45° C |
| Environmental | |
|---|---|
| Temperature | -10º C to 50° C | 14º F to 122° F (operating) -10º C to 40º C | 14º F to 104° F (storage) |
| Humidity | 85% RH @ 50° non-condensing |
| Shock and Vibration | SAE J1455 |
| Ingress Protection Rating | IP66 Certified (connector dependent) |
| Physical/Design | |
|---|---|
| Dimensions | 5.61” x 3.25” x 1.28 (142.7 x 82.7 x 32.7 mm) |
| Weight | 258g (9.1 oz) |
| Sensors | |
|---|---|
| BLE SC iOn Tags | |
| Motion | Stationary/moving after stationary |
| Temperature | NIST Traceable Accuracy +/- 0.5C type (-30C to 60C) Min/Max Threshold (configurable) |
| Light | Threshold on/off |
| Shock | Dedicated 3-axis accelerometer 16 G max |
| Impact | General shock event |
| Drop | Vertical drop above threshold |
| Tilt | 90 degrees |
| Tag Processing | Up to 600 per report |
| Electrical | |
|---|---|
| Operating Voltage | 12/24 VDC Vehicle Systems 9-30 VDC (start-up, operating) 7-35 VDC (momentary) |
| Power Consumption | Typical 4uA @ 12V (deep sleep) Typical 100mA @ 12V (radio-active sleep) |
| Product Options | |
|---|---|
| SC iOn Platform | |
| 24/7 Command Center Monitoring | |
| Calamp Telematics Cloud API |
