SC1000

SC-1004

Reusable, Compact, Portable or Fixed Smart Tracking Device for Shipment Visibility and Compliance
Software & Services
Highlights
Technical Specs
Related Products
Download PDF
Software & Services

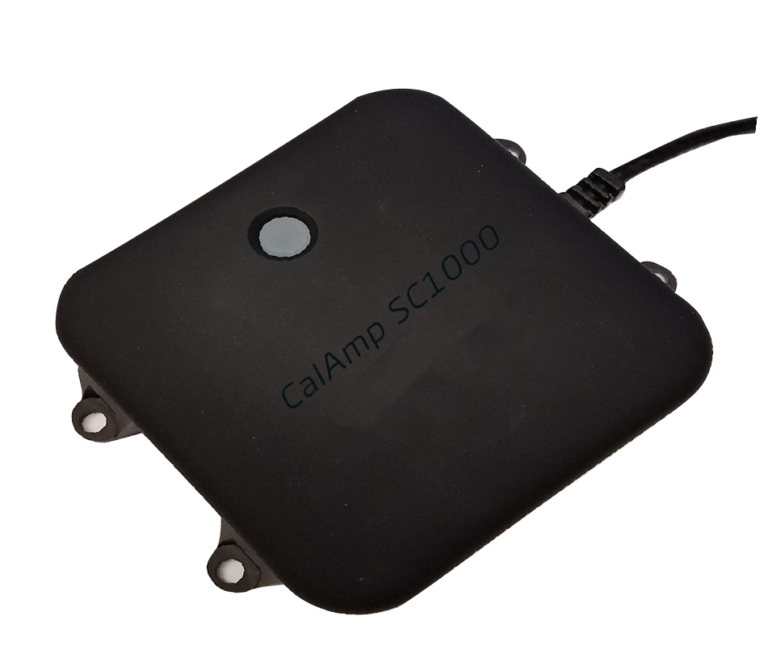

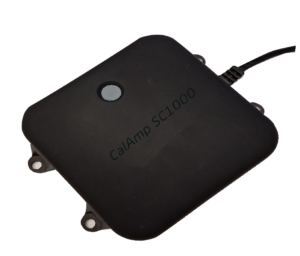

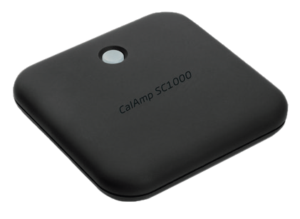

The SC1004 is a battery-operated or externally powered tracking device engineered for capturing in-transit temperature and location. It is an ideal solution for tracking shipments over the road, in flight and at sea when global coverage is needed to maintain supply chain integrity, security and regulatory compliance.

Software and Services

  • SC iOn Platform
  • 24/7 Command Center Monitoring
  • API Platform Support

Networks

  • 3G Cellular Worldwide
  • 2G Cellular Fallback
  • Wi-Fi Enabled
Highlights

Reusable, Compact, Portable

Inventory

Features

  • Ocean & Flight Modes
  • One Button Activation
  • Waterproof (IP67)
  • NIST Traceable
  • Battery & External Power Options
Proof Of Delivery

Market Applications

  • Asset Tracking
  • Cargo Monitoring
Technical Specs
Cellular/Network
GSM/GPRS

3G cellular worldwide

850/900/1800/1900/2100 MHz

Fallback to 2G (if no 3G)

Bi-directional communications

Over-the-air adjustable reporting rate

Reporting rate: 1 min to 24 hour

Wi-Fi Enabled

2.4Ghz B/G/N

Location Accuracy
Wi-Fi

100 meters

Cellular

500 meters

GPS

3-5 meters

Certifications
Industry Certifications

FCC, ISED, PTCRB, DO-160, NOM, IFETEL, CE, DGM, Thailand,
Singapore

Power
Rechargeable li-Ion battery

3.7V 4000mAh (14.8Wh, 5.0A rate)

External

Optional

Operating Parameters

On/Off button

Qi wireless recharging (8 hr recharge time)

Battery Duration: 15 days @ 15 mins

Physical/Design
Dimensions

3.9” x 3.9” x 0.5” (9.8 x 9.8 x 1.2 cm)

Weight

175g (6.2 oz)

Environmental
Temperature

-10 C to 50° C (operating) / 14 to 122° F (operating)

-10 C to 40º C (storage) / 14 to 104° F (storage)

Shock and Vibration

Resistant

IP

IP67

Sensors
BLE SC iOn Tags
Motion

Stationary/Moving after Stationary

Temperature

NIST Traceable

Accuracy +/- 0.5C type (-30C to 60C)

Min/Max Threshold (configurable)

Light

Threshold on/off

Pressure

Flight detection

Shock

16 G max

Impact - general shock event

Drop - vertical drop above threshold

Tilt - 90 degrees

Product Options
SC iOn Platform
24/7 Command Center Monitoring
API Platform Support
Optional Accessory: SC1004 Mounting Bracket
Case Size

178mm(L) x 119mm (W) x 22mm(H)

Country of Manufacturing

United States

Magnet Size

31.75(D) x 7mm(H) without post

Magnet Type

88-pound pull Neodymium with #12-24 threaded stud

Hardware Specifications

Stainless steel 6.35mm nylon insert lock nut

Zinc Plated low carbon steel washer 25.4mm

CALIFORNIA PROPOSITION 65
WARNING: This product can expose you to chemicals including Carbon black and Nickel, which are known to the State of California to cause cancer, and including Bisphenol A and 1,3-Butadiene, which are
known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
