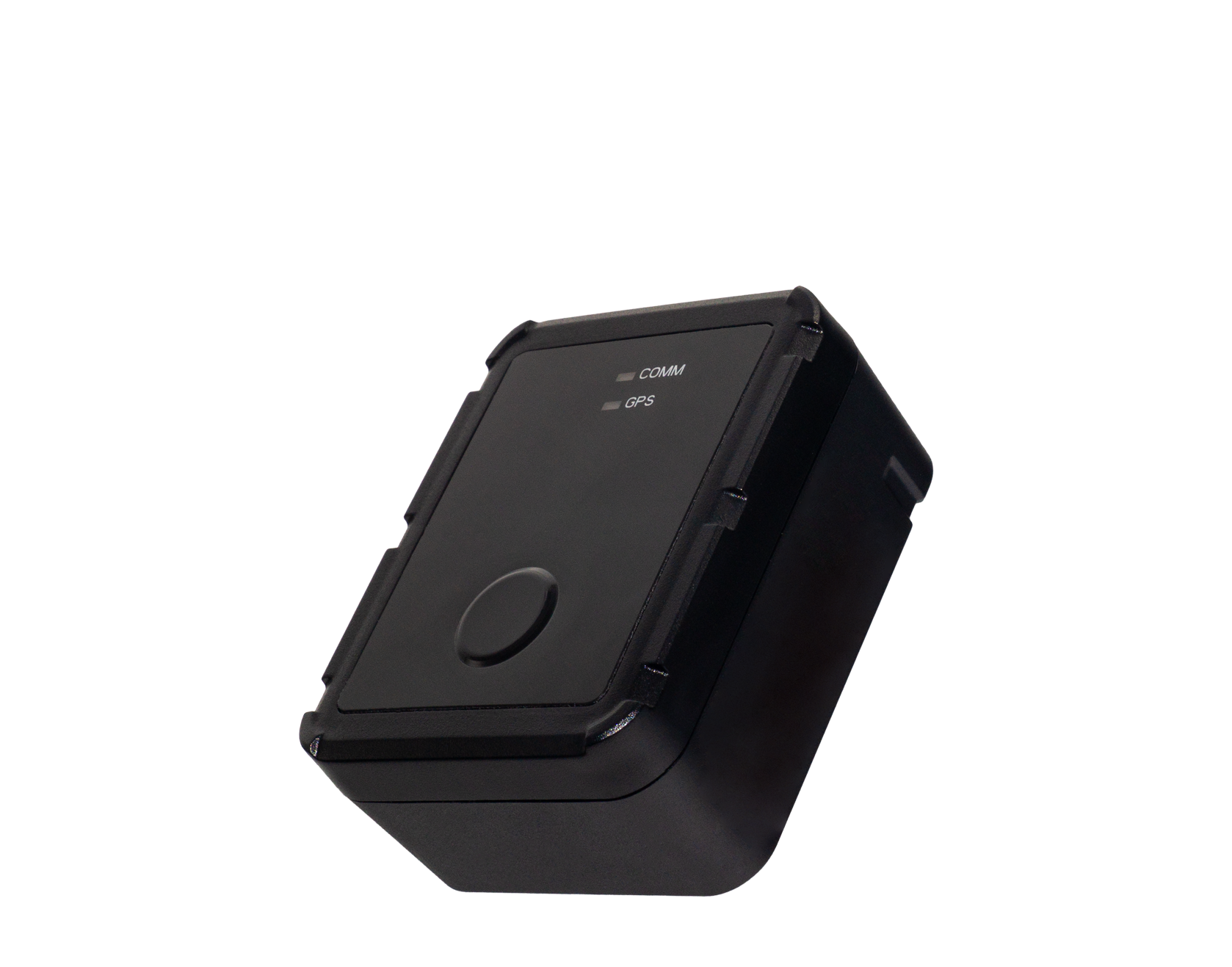

ATU-1650MB™
Compact Multi-Purpose Asset Tracker
The ATU-1650MB™ is a compact, weatherproof GPS tracker offering up to 7 years of battery life, exceptional accuracy, and seamless integration for advanced asset protection and vehicle recovery.
Designed to deliver industry-leading tracking accuracy, long battery life, and rugged performance for diverse applications, the CalAmp ATU-1650MB is a next-generation wireless GPS tracking device with a compact, discreet form factor that allows for easy mounting and seamless integration into any environment. Built for standalone use or to supplement existing asset protection systems, the ATU-1650MB is a powerful tool for advanced vehicle recovery and asset tracking.
With up to 7 years of battery life, configurable tracking intervals, and remote management through CalAmp Device Management, this device combines versatility, durability, and efficiency. Whether safeguarding assets or enhancing operational control, the ATU-1650MB empowers businesses to stay ahead with secure, scalable tracking solutions.
Highlights
Rugged & weatherproof design
7 years battery life
Multi-Region Connectivity
Standalone or Dual-Device Operation modes
BLE 5.2
| Cellular Connectivity | |
|---|---|
| LTE CAT-M1 Bands |
B1, B2, B3, B4, B5, B8, B12*, B13, B18, B19, |
| 2G Bands |
850/900/1800/1900 MHz |
| SIM Access |
Internal 4FF |
| GNSS | |
|---|---|
| GNSS Constellations |
GPS, GLONASS, BeiDou, Galileo |
| Tracking Sensitivity |
-161 dBm |
| Acquisition Sensitivity |
-145 dBm (cold start) |
| Location Accuracy |
<2.5 CEP |
| AGPS Location Assistance |
Enabled |
| I/O Interfaces | |
|---|---|
| USB Port |
Internal debug & configuration |
| Connectors & Antennas | |
|---|---|
| Cellular Antenna |
Internal |
| GPS Antenna |
Internal |
| BLE Antenna |
Internal |
| Certifications | |
|---|---|
| FCC, PTCRB, CE, CE Cybersecurity, ISED, RoHS 3, E-Mark, Applicable Carriers |
| Battery Pack | |
|---|---|
| Battery Capacity |
4400mAh |
| Battery Technology |
LiMnO2 |
| Battery Life** |
• One report per day: up to 7 years |
network availability, and any advanced configurations or optional BLE‑enabled features.
| Environmental | |
|---|---|
| Temperature |
-25°C to +68°C (operating) |
| Humidity |
+25°C to +60°C, 65% RH |
| Shock and Vibration |
SAE J1455 |
| Electrostatic Discharge |
IEC61000-4-2 (4kV) |
| Ingress Protection Rating |
IP66 & IP67 |
| Interface Standards | |
|---|---|
| Bluetooth |
BLE 5.2 |
| Edge Programming | |
|---|---|
| Operating System |
ThreadX RTOS |
| Firmware |
EdgeCore |
| PEG2 |
Programmable device behavior logic for intelligent event processing |
| Onboard Geo-Fences |
Locally stored geofence data for real-time geospatial processing |
| Buffered Messages |
20,000 |
| Software Services | |
|---|---|
| Device Management |
Manage, configure, and deploy OTA software updates to connected assets at scale |
| CalAmp Telematics Cloud |
Stream telematics data into proprietary systems with flexible API integration |
| Physical Design | |
|---|---|
| Dimensions |
2.5” x 2.0” x 1.1” (63.5 mm x 50.8 mm x 27.9 mm) |
| Weight |
3.7 oz (106 g) |
| Accessories | |
|---|---|
| Installation bracket |
Sold Separately |
