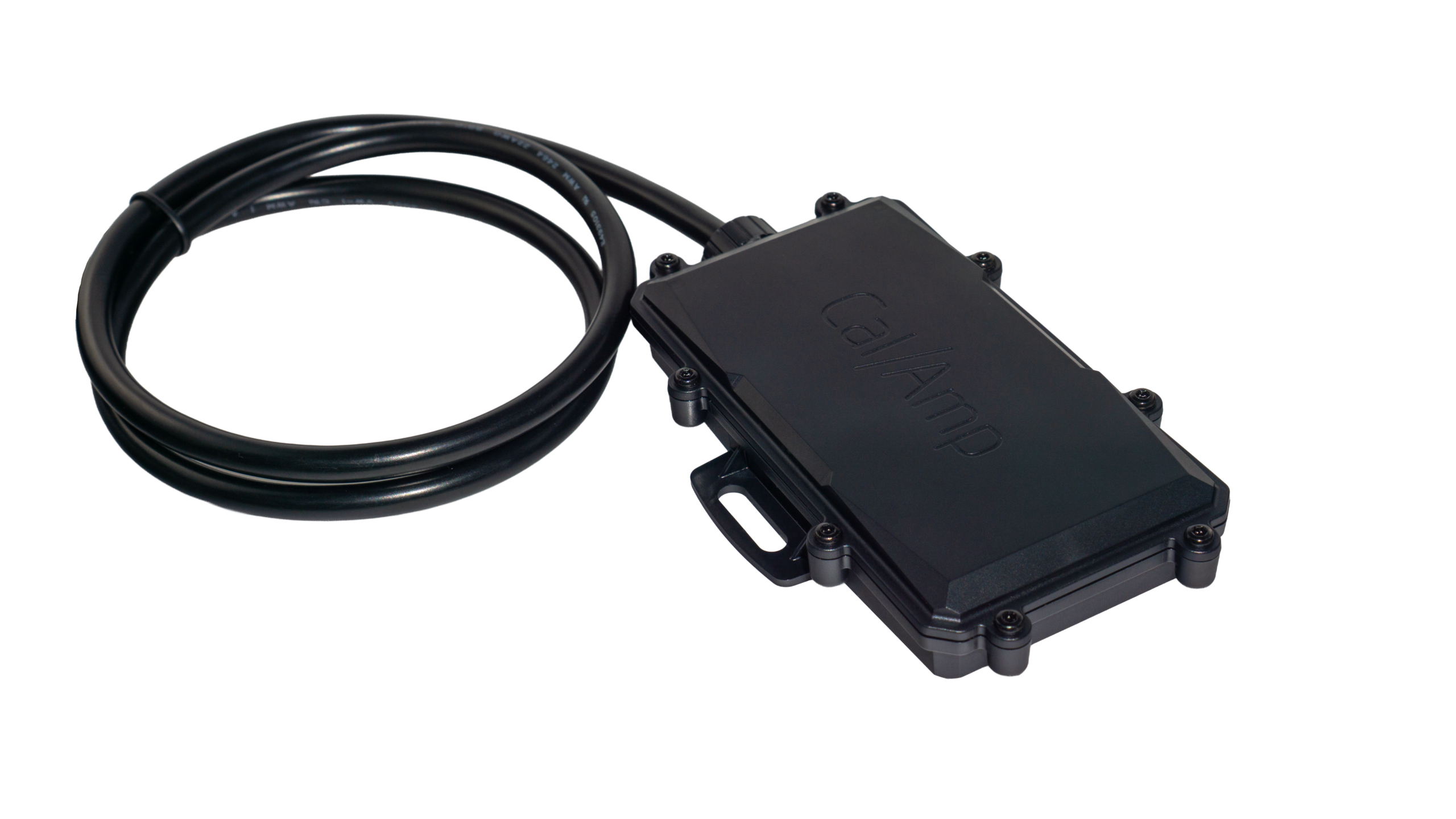

LMU-2650MB™
LTE CAT M1 Sealed
Purpose-Built Cellular Gateway for Sensor-Rich Asset Intelligence
Flexible Application Options
Streamline integration of CalAmp telematics data into your application via API or rely on CalAmp app to manage all of your vehicles and assets.
Secure, reliable, and scalable EdgeCore firmware affords you complete access to the full arsenal of EdgeApp development capabilities:
- Run compute-intensive applications locally on telematics hardware
- Tackle latency-sensitive use cases
- Protect your IP and streamline development of new functionality in your application
- Interface with mobile applications
- Ease integration of 3rd party sensors and peripherals
Asset Tracking Technology
Flexible • Precise • Affordable
Rich Connectivity
Bluetooth 5.2 support and additional analog/digital/serial inputs/outputs for exceptional connectivity and performance.
Flexible Installation
Wired, OBDII, and cigarette lighter power harness options for ready-to-use device setup
Rugged IP67 Design
Built for harsh and exposed environments with a sealed IP67-rated enclosure designed to withstand dust, water, vibration, and extreme operating conditions.
Remote Safety Lockout
Easily disable vehicles or equipment, and remotely enable theft detection and stolen vehicle recovery
Advanced Accelerometer
Built in triple-axis accelerometer with improved accuracy for driver behavior, impact detection, motion sensing, and tilt detection - with no external connections required.
Enhanced Backup Battery Performance
Lithium Iron Phosphate battery delivers longer life span, improved safety, lighter weight, and improved discharge and charge efficiency.
| Cellular Connectivity | |
|---|---|
| LTE CAT M1 Bands |
B1, B2, B3, B4, B5, B8, B12, B13, B18, B19, B20, B25, B26, B28, B39 |
| GSM Fallback |
850/900/1800/1900 MHz |
| GNSS | |
|---|---|
| GNSS Constellations |
Hybrid GPS, GLONASS, BeiDou, Galileo, QZSS |
| Receiver |
55 Channels |
| Tracking Sensitivity |
-163 dBm |
| Acquisition Sensitivity |
-148 dBm (cold start) -155 dBm (hot start) |
| Location Accuracy |
~2.5m CEP (Open Sky) |
| Location Update Rate |
Up to 5 Hz |
| AGPS Location Assistance |
Supported |
| 12-Wire Harness I/O | |
|---|---|
| 1 Ignition Input |
Fixed bias |
| 2 Digital Inputs |
0-32 VDC, high/low bias selectable |
| 3 Digital Outputs |
150mA, open collector relay driver outputs |
| 1 Analog Inputs |
0-32 VDC, general purpose |
| 1-Wire® Interface |
1-Bit Bus |
| Serial Interface |
2-wire TTL Tx/Rx |
| 2 Power |
12/24 VDC, Ground |
| Sensors |
3-Axis Accelerometer |
| Serial Interface |
1 USB (internal) |
| Status LEDs |
2 (GPS and Cellular) |
| Interface Standards | |
|---|---|
| Bluetooth |
BLE 5.2 |
| Serial Interfaces |
TTL (1), USB (1) |
| Connectors & Antennas | |
|---|---|
| BLE Antenna |
Internal |
| Cellular Antenna |
Internal |
| GPS Antenna |
Internal |
| Power, Ground, I/O |
12-wire captured harness |
| SIM Access |
Internal (2FF SIM) |
| Electrical | |
|---|---|
| VIN Operating Voltage |
12/24 VDC Vehicle Systems |
| Power Consumption |
Typical <500µA @ 12V (low power sleep) |
| Battery Pack | |
|---|---|
| Battery Capacity |
1100 mAh |
| Battery Technology |
Lithium-Ion Phosphate (LiFePO4) |
| Charging Temperature |
0° to +45° C |
| Environmental | |
|---|---|
| Temperature |
-30° to +60° C (connected to primary power) -20° to +60° C (operating on internal battery) -20° to +25° C ≤ 6 months (long term storage |
| Humidity |
<= 85% RH @ +50° C non-condensing |
| Shock and Vibration |
MIL-STD-202G, SAE J1455, MIL-STD-810F |
| ESD |
IEC 61000-4-2 (4KV test) |
| Ingress Protection Rating |
IP67 |
| Edge Programming | |
|---|---|
| Operating System |
ThreadX RTOS |
| Firmware |
EdgeCore |
| PEG2 |
Programmable device behavior logic for intelligent event processing |
| EdgeApp SDK |
Develop custom applications and features on the edge |
| Hosted Application Support |
3MB program flash |
| Cloud/Software Services | |
|---|---|
| Device Management |
Manage, configure, and deploy OTA software updates to connected assets at scale |
| CalAmp Telematics Cloud |
Stream telematics data into proprietary systems with flexible API integration |
| Certifications | |
|---|---|
| Industry Certifications |
FCC, CE (pending), IC, PTCRB, RoHS |
