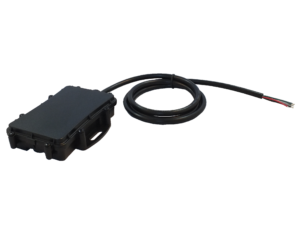

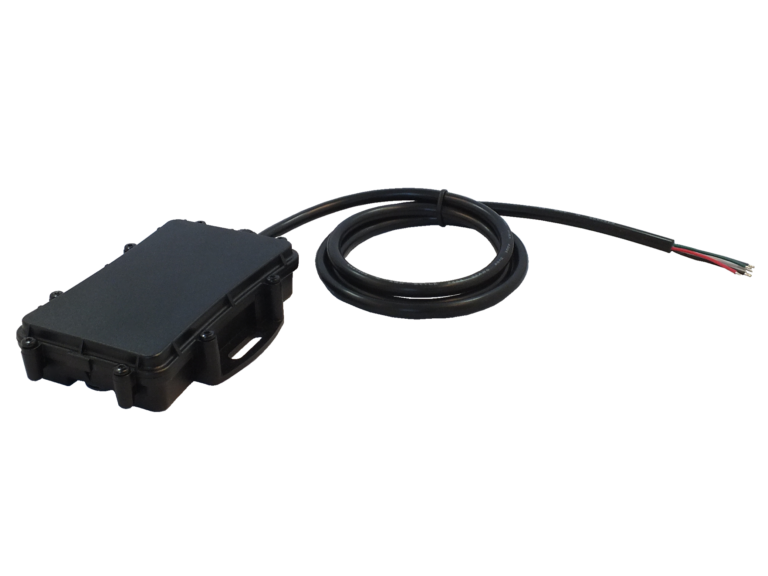

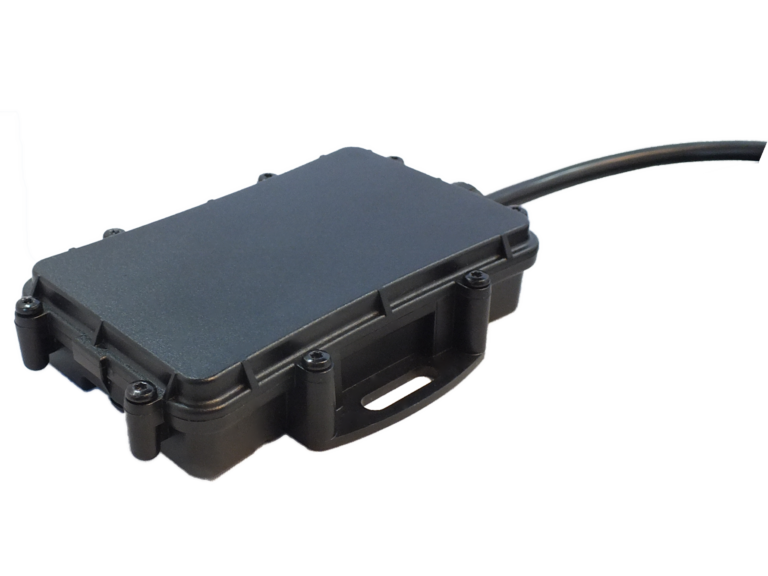

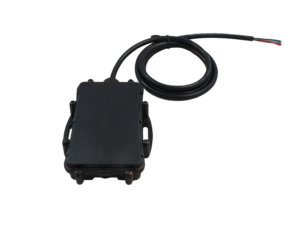

LMU-2630MB™ Sealed
Rugged sealed LTE CAT M1 fleet tracker with 12-wire harness
1 of 3
The LMU-2630MB Sealed is built for demanding fleet environments with LTE CAT M1 connectivity and an integrated 12-wire sealed harness. Comprehensive I/O, a backup battery, motion sensing, and CalAmp edge intelligence support reliable tracking, diagnostics, and asset control.
- LTE CAT M1 connectivity for fleet and asset visibility
- Sealed 12-wire harness supports rugged installations
- Digital and analog I/O connect sensors and controls
- Internal backup battery supports power-loss reporting
- Triple-axis motion sensing enables driver and impact events
- CalAmp edge intelligence supports configurable device behavior
Product specifications
| Physical Design | |
|---|---|
| Dimensions | 77.8 × 113 × 22 mm (3.06 × 4.45 × 0.87 in) |
| Weight | 193 g (6.8 oz) |
| Cellular | |
|---|---|
| LTE Cat-M1 Bands | B1, B2, B3, B4, B5, B8, B12, B13, B18, B19, B20, B25, B26, B28, B39 |
| 2G Fallback Bands | B2, B3, B5, B8 |
| Cellular Data Support | SMS, UDP Packet Data, TCP |
| GNSS | |
|---|---|
| GNSS Constellations | GPS, GLONASS, SBAS (WAAS, EGNOS, MSAS) |
| GNSS Channels | 55 Channel |
| Tracking Sensitivity | -167 dBm |
| Acquisition Sensitivity | -156 dBm (hot start) -148 dBm (cold start) |
| Location Accuracy | ~2.0m CEP Open Sky (GPS SBAS 24 hours static) |
| Location Update Rate | Up to 4 Hz |
| A-GPS Location Assistance Capable | Yes |
| Wireless Interfaces | |
|---|---|
| Bluetooth | BLE 5.0 |
| Vehicle & Interfaces | |
|---|---|
| Serial Interface | TTL |
| Antennas & SIM | |
|---|---|
| Cellular Antenna | Internal |
| GPS / GNSS Antenna | Internal |
| SIM Access | Internal (2FF SIM) |
| Power | |
|---|---|
| Operating Voltage | 12/24 VDC Vehicle Systems 9-30 VDC (start-up, operating) 7-32 VDC (momentary) |
| Power Consumption | Typical <400uA @ 12V (low power sleep) Typical <4mA @ 12V (sleep) Typical 25mA @ 12V (radio-active sleep) Typical 50mA @ 12V (GPS tracking and cell idle) |
| Battery Capacity | Up to 1000 mAh |
| Battery Chemistry | Lithium-ion (Li-ion) |
| Charging Temperature | 0° to +45° C |
| Environmental | |
|---|---|
| Operating and Storage Temperature | -30° to +60° C (connected to primary power) -10° to +60° C (operating on internal battery) -20° to +25° C ≤ 6 months (long term storage with battery) |
| Humidity | 85% RH @ 50° C non-condensing |
| Shock and Vibration | MIL-STD-202G, MIL-STD-810F, SAE J1455 |
| Electrostatic Discharge | IEC 61000-4-2, 4 kV |
| Ingress Protection Rating (IP) | IP67 |
| Sensors | |
|---|---|
| Motion Sensor | 3-axis accelerometer |
| I/O | |
|---|---|
| Primary Device Connector | 12 Wire Captive Harness |
| Ignition Inputs | 1 fixed bias |
| Digital Inputs | 2 (high/low bias selectable 0-32 VDC) |
| Digital Outputs | 3 (open collector relay 150mA) |
| Analog Inputs | 1 (external ADC input 0-32 VDC) |
| Serial Interface | 1 TTL Port |
| 1-Wire Interface | 1 (driver ID/temperature sense) |
| Status LEDs | 2 (GPS and Cellular) |
| Edge Intelligence | |
|---|---|
| Firmware | 32-Bit |
| Edge Programming | PEG |
| Software Services | |
|---|---|
| Device Management | Manage, configure, and deploy OTA software updates to connected assets at scale |
| CalAmp Telematics Cloud | Stream telematics data into proprietary systems with flexible API integration |
| CalAmp Application | Fleet and asset management software for tracking, monitoring, and managing vehicles, equipment, drivers, assets, and cargo. |
| Certifications | |
|---|---|
| Certifications | FCC, IC, CE, PTCRB, BT SIG, RoHS, ASEP, ANATEL, CITC, GITEKI, INDOTEL, NBTC, NTC, RCM, SASO, SIT, VNTA |
| Carrier Certifications | AT&T, Sprint, Verizon |
