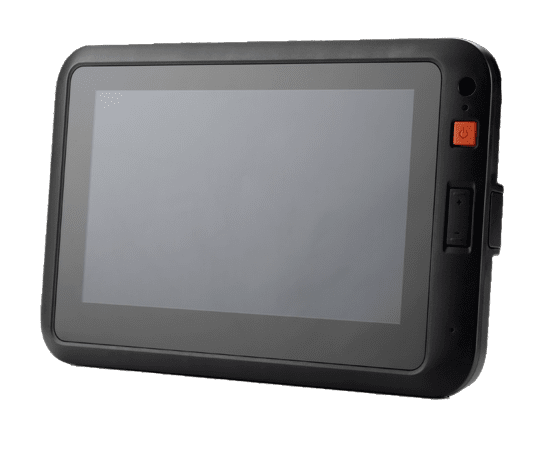

MDT-8M™
CalAmp® ELD 8M
A heavy-duty ELD tablet offering advanced telematics applications and services
Cloud Native Platform
CalAmp Telematics Cloud allows you to connect remote assets to a diverse set of vertical applications and third-party services to scale your fleet and power data-driven operations.
Powerful Applications
CalAmp’s enterprise-grade applications allow you to visualize the data you need and extract maximum value while minimizing your costs. Put intelligent analytics and custom reporting at your fingertips via a single-view, user-friendly interface.
Connectivity Technology
Integration-Ready • Scalable • Secure
Maintenance-Free Technology
One-time deployment, no ongoing service required
Device Life Optimization
Ensure long-term installations with up to 5 years battery life at once-daily location updates
Responsive Asset Tracking
Gain accurate and powerful movement-based asset tracking built with your data and performance needs in mind
Battery Status Notifications
Optimize battery health and device service scheduling with reliable notifications
Rugged and Resilient Design
Deploy devices built to withstand fine dust particles and submersion in one meter of water for up to 30 minutes
ELD Support
Streamline compliance with electronic DVIR and automated IFTA reporting
| Android Tablet Features | |
|---|---|
| Display |
7” 1024 x 600 IPS (4000 nits, LED backlight) |
| Operating System |
Android™ 9.0 |
| Processor |
Qualcomm® Snapdragon™ SDM450 Octa core, 1.8GHz |
| Memory and Storage |
2GB RAM / 32GB internal storage |
| Speaker |
1 |
| Microphone |
2 |
| Cameras |
Rear: 8 megapixels; Front: N/A |
| Connectivity | |
|---|---|
| Serial Interface |
115200 Baud 8Bit/1stop/no Par |
| Wireless Interface |
WEP, WPA/WPA2 PSK, 802.11x EAP security standard, WIFI Direct® Bluetooth® 4.2 BLE GPS (including AGPS) + GLONASS, simultaneously tracking LTE Cat.6 FDD Band 2/4/5/7/12/13/14/17/25/26/66/71 IEEE 802.11 a/b/g/n/ac/d/h/i/k/r/v/w (2.4GHz & 5GHz) |
| NFC |
NFC: MiFare®, FeliCa HF RFID: ISO14443 A&B, ISO15693 |
| Battery Pack | |
|---|---|
| Charging Temperature |
4,000mAh Li-ion Polymerc |
| Battery Capacity |
Battery life 10 hours + depending on usage (charging status on screen) |
| Environmental | |
|---|---|
| IP Rating |
IP54 and MIL-STD-810G 1.2m/4ft drop resistant |
| Shock & Vibration |
SAE J1455 standard, up to 20G peaks |
| Temperature |
-20° to +60°C (-4° to +140°F) operating temperature*** -30° to +70°C (-22° to +158°F) storage temperature |
| Humidity |
0 ˜ 95%, non-condensing |
| Altitude |
Operating: 0 ˜ 4,572m (15,000ft); non-operating: 0 ˜ 12,192m (40,000ft) |
| Connectors | |
|---|---|
| Touch Panel |
Capacitive multi-touch with optical bonding, glove support & water resistant, anti-glare coating |
| Platform |
Bluetooth® 4.2 BLE |
| Expansion |
MicroSD slot (up to 128GB) |
| NFC |
NFC: MiFare®, FeliCa HF RFID: ISO14443 A&B, ISO15693 |
| Sensors |
Accelerometer (G sensor) - auto rotation eCompassAmbient light sensor Gyro Vibration motor |
| Physical Interface |
MicroSD slot (up to 128GB capacity) MicroSIM slot USB Type-C 2.0 (supports OTG) 18-pin pogo pin connector (charging & data transmission) Built-in mic x2 (supports noise cancellation); Built-in speaker x1 |
| Buttons |
Front: power button Soft buttons: on screen Android navigation keys |
| Cradle (non IP-rated) | Specifications Kiron Pro / ELD cradle |
|---|---|
| I/O port |
microUSB (charging only) x1; Power input 5V/2A |
| Cradle Interface |
Pogo pin connector for power and data (10 pins) |
| Fleet Port |
Tx/Rx signal |
| Accessory | |
|---|---|
| Vehicle Charger + Cable Set |
Vehicle charger (5V/2A) + MicroUSB cable, 1.3m |
